Jackets Heaters & Pads, Heating Tape, Chord element

Design:

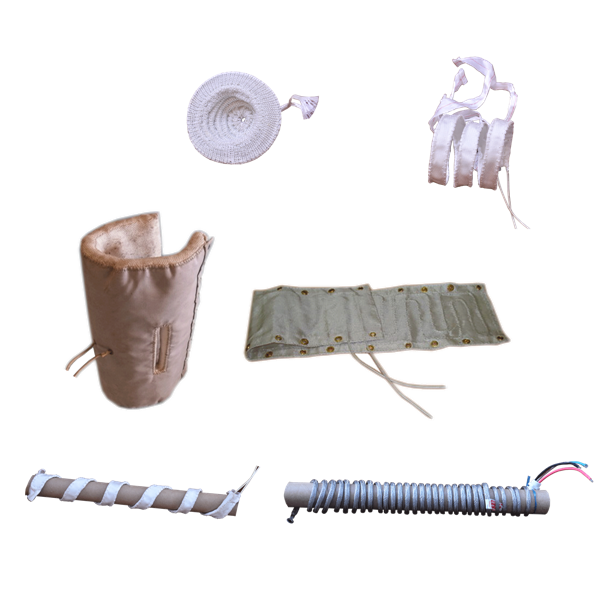

These are made out of Nichrome/Kanthal spring coils spirally wounded to fiberglass/quartz yarn. Outer sides of these elements are again covered with yarn & are stitched to fiberglass clothes. A fiber insulation pad will be provided above the heater to prevent the heat radiation.

Heating elements are covered with fiberglass clothes of 25mm width, maximum length of 5 meters. Chord elements made out of fiberglass yarns with a diameter of 8mm maximum length of 7meters. These are available with fiberglass and quartz insulation materials.

Features:
• Faster heat transfer
• Highly flexible Heater
• With or without Fiberglass covering
• Reduces heat radiation
• Power saving is up to 40% *
• Longtime heat retention
• Lower power consumption
• Max operating temperature is up to 350˚C in fiberglass and 700˚C
quartz insulation.

Application:
Plastic extrusion machines, Blow & Injection molding plants, Heating vessels, In Reactors, Pipeline heating, Motor space heaters.
